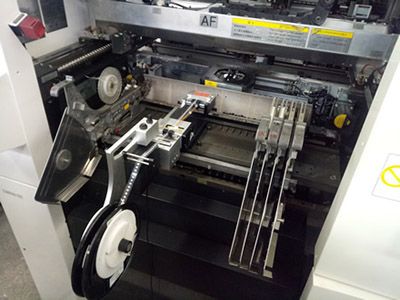

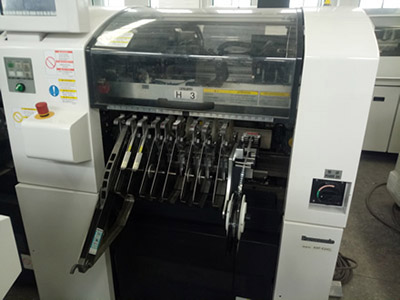

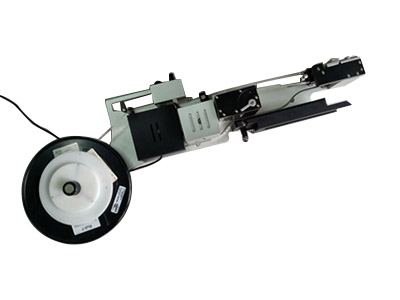

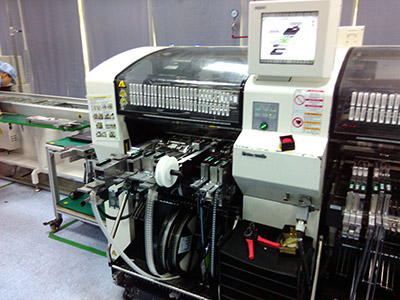

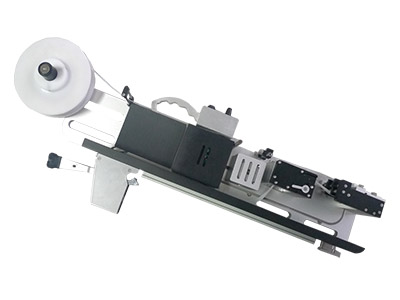

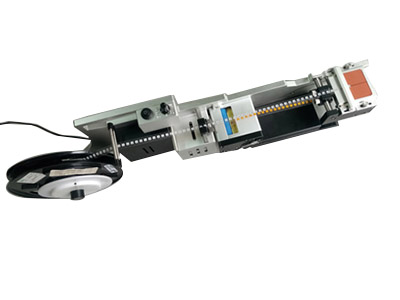

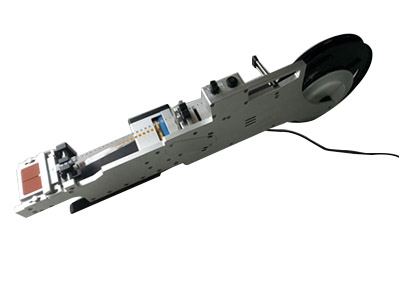

panasonic label feeder
A Panasonic label feeders is an automated device that accurately dispense labels in SMT PCB assembly, enhancing productivity and precision while being compatible with a wide range of Panasonic pick-and-place machines.
Compatibility and Models
Compatible Machines: Panasonic feeders support models such as CM402, CM602, NPM, KME, and CM202, among others
Label Sizes: Typical label widths include 50mm, 85mm, and 100mm, with customization available. Minimum label size can be as small as 2x2mm
Key Features
High Precision & Speed: Utilizes stepper motors and optical sensors to maintain accurate label placement, with adjustable speeds and multi-row handling capabilities
Multi-Material Handling: Supports different materials like Mylar tape, metal shielding, foam pads, and protective films, making it versatile for various production needs
Flexible Feeding: Single or multi-column feeding options maximize efficiency, with X-Y-Z position adjustment and software-assisted fine-tuning
User-Friendly Interface: Touchscreen or software interfaces allow easy setup, calibration, and monitoring
High Reliability: Designed for continuous operation with low malfunction rates and long service life (up to 5 years), with performance tests such as continuous 500 cycles without error
Applied to : those Panasonic SMT machines such as KME, CM202, CM402, CM602, NPM and so on.
We have three Liner(web) width for Panasonic label feeder, 50mm, 85mm and 100mm, also we can make customized Liner Width as your request, so our label feeder can peel and present more than 2 lables at one time, so it is more efficient and productive.

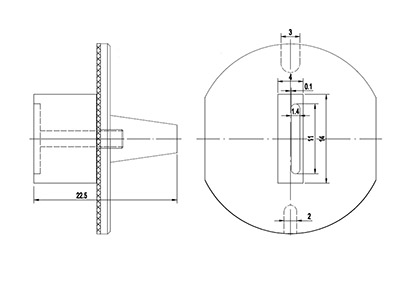

We also supply you Cutomized nozzle for Panasonic label feeder , send us your datasheet for labels or samples we can design and manufacture the special nozzles for you :
