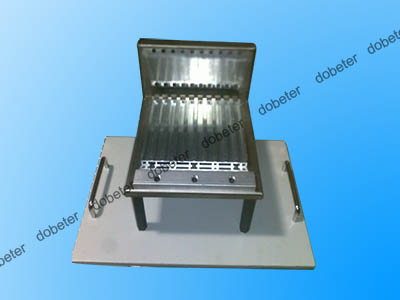

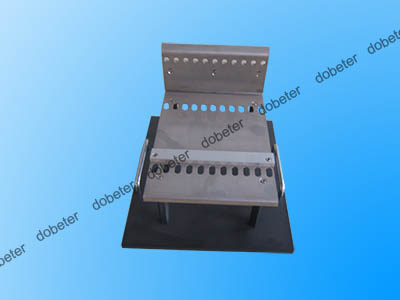

Samsung feeder loading unit

Samsung feeder loading units are specialized devices for offline loading and storage of Samsung SMT feeders, streamlining component management and improving operational efficiency in PCB assembly processes.
Purpose and Functionality
Samsung feeder loading units are designed to store and manage Samsung SMT feeders, including CP, SM, and SME types. These units facilitate the offline preparation of feeders for automated pick-and-place machines, enabling operators to load feeders efficiently without stopping the production line.
They ensure that feeders are readily available for machines such as CP40, CP45FV, CP45FV NEO, SM310, SM320, SM321/321S, SM421/421S, SM411, SM431, SM471, SM481, SM482, DECAN S2/F2/L2, and EXCEN PRO.
Design and Features
Structure and Build: Typically made from high-quality steel with baking paint for durability. The units are built for linear, simple installation and easy maintenance.
Capacity: Standard units can hold multiple feeders at the same time; for example, some units can accommodate up to 10 SMN Feeders simultaneously.
Compatibility: Separate units are available for CP series and SM series feeders, ensuring compatibility across different Samsung SMT machines.
Offline Loading: Allows for offline feeder loading, reducing downtime on the pick-and-place line while maintaining production efficiency.
Operational Integration: Units can include high-precision components, such as double-crank mechanisms for die handling, filters, conveyor belts, vacuum solenoid valves, and other attachment kits to align with feeder operations.
