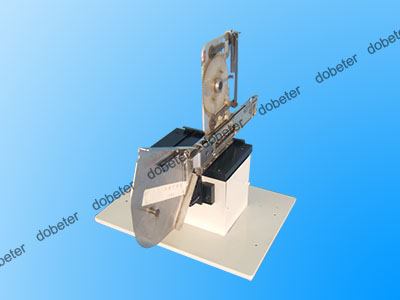

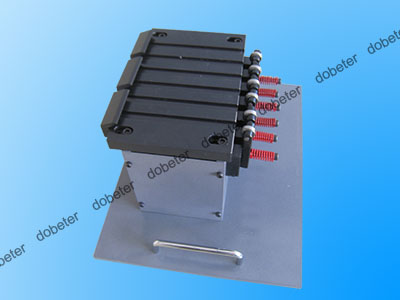

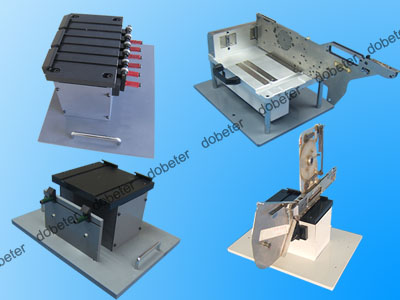

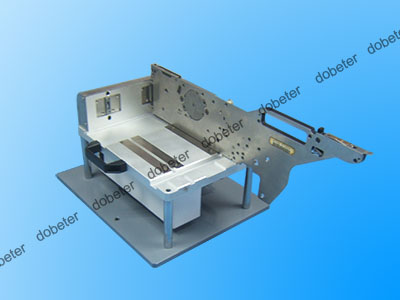

Fuji Feeder Loading Unit Station

Dobeter's Fuji Feeder Loading Unit Station is a Smart Setup Station or offline feeder preparation unit, an auxiliary device used in SMT production to prepare feeders with components away from the main pick-and-place machine. This practice, known as offline changeover, helps minimize machine downtime and improve overall line efficiency.
Function and Features
The main purpose of a feeder loading unit station is to streamline the setup process and prevent human errors, which are common during manual part supply.
Offline Preparation: It allows operators to load component reels, adjust the tape, perform preliminary inspections, and functionally test the feeders without interrupting ongoing machine production.
Automated Guidance: When integrated with a production system like Nexim, the station can guide the operator to the correct feeder position for a specific part ID. Visual cues, such as color changes on a monitor, confirm correct installation.
Error Prevention: By providing visual confirmation and integrating with the production software, the system ensures that the correct parts are loaded in the designated positions, preventing placement defects on the production line.
Automated Unloading: For changeovers, the Smart Setup Station can automatically wind up and remove feeders containing parts that are no longer needed for the upcoming production run, significantly reducing manual work and the need to review extensive changeover lists.
Feeder Inspection: These stations can also double as inspection jigs to check and adjust feeder conditions (e.g., proper feeding action) to ensure stable part supply and high placement accuracy.
Compatibility
Fuji offers different versions of these stations for various machine series:
NXT, AIM, AIMEX, XPF Series: Compatible with modern intelligent feeders (FIF) and Multi Feeder Units (MFU).
CP Series: Older, sometimes non-powered, setup stands for models like CP4, CP6, CP7, and CP8 machines are also available.
XP Series : XP241E, XP242E, XP243E, XP341E, QP341, QP242, QP242E, IP1, IP2, IP3

Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS
