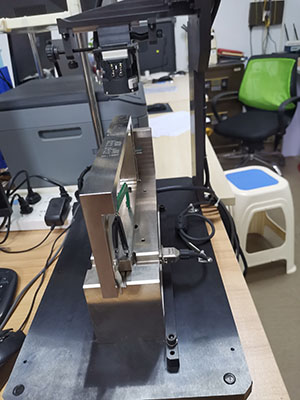

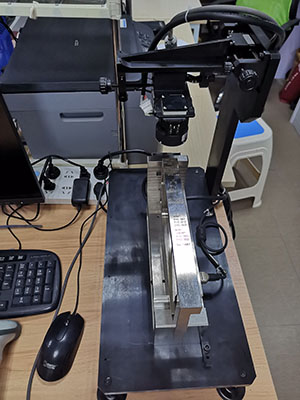

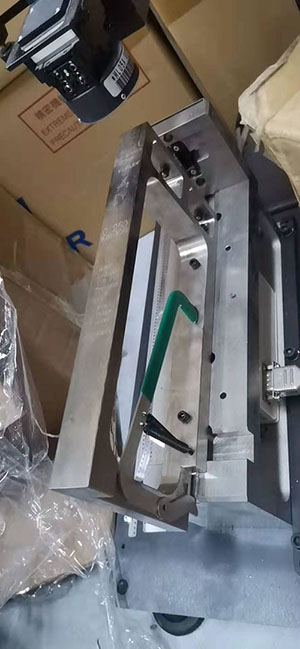

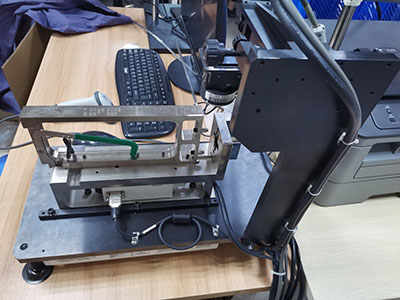

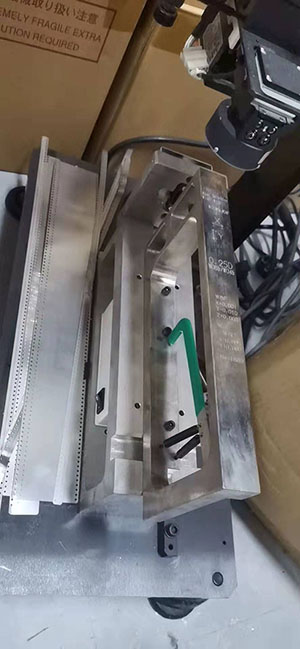

FUJI NXT Feeder Calibration Jig

A FUJI NXT Feeder Calibration Jig is a precision tool used in Surface Mount Technology (SMT) manufacturing to ensure the accurate alignment and optimal performance of Fuji NXT series feeders. This process is vital for minimizing component misalignment and maximizing production accuracy and efficiency.
Product Information
Function: The primary purpose is to check and adjust the condition of SMT feeders, which ensures stable parts supply and high accuracy placements by the pick-and-place machine.
Compatibility: Jigs are available for various models, including the Fuji NXTI, NXTII, NXTIII, M3, M6, AIM, and XPF feeders. They often cover a range of tape widths (e.g., 8mm to 24mm).
Features:
High Precision: The design emphasizes accurate detection and effective control systems.
Durability: They are typically constructed from robust materials like high-quality aluminum or stainless steel to withstand industrial use.
How to Use
The calibration process is designed to be straightforward:
Switch On: Turn on the Fuji NXT Feeder Calibration Jig unit.
Self-Check: The machine will display a black and white cross cursor and perform a self-check.
Calibration: Wait for the jig to stop moving, which indicates that the initial self-calibration is complete. The operator can then use the standard calibration ruler and visual system for final adjustments and verification of the feeder's performance.

Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS
