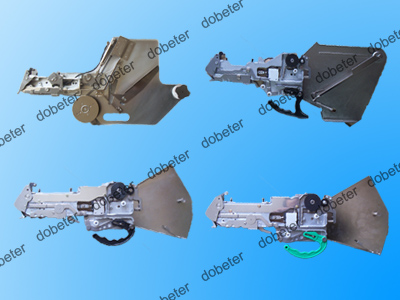

yamaha pneumatic feeder

Yamaha pneumatic feeders are cost-effective, air-driven devices for feeding components in SMT pick-and-place machines, providing reliable, smooth, and easy-to-maintain operation, particularly suitable for low- to medium-volume production.

Overview and Functionality
Yamaha pneumatic feeders are used in SMT pick-and-place machines to deliver electronic components like resistors, capacitors, and ICs to the machine accurately and efficiently

They employ air pressure mechanisms to drive component tapes, unlike electric feeders which use motor-driven systems. Pneumatic feeders are valued for their simplicity, durability, and lower cost, making them suitable for small-scale or flexible production lines

Types and Compatibility
Yamaha pneumatic feeders include a variety of models:

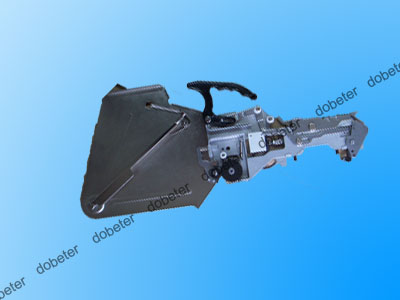

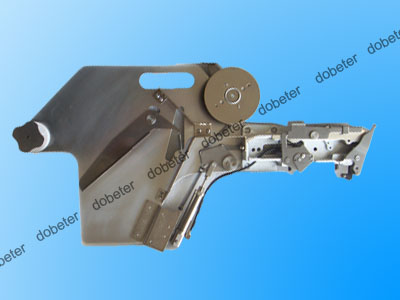

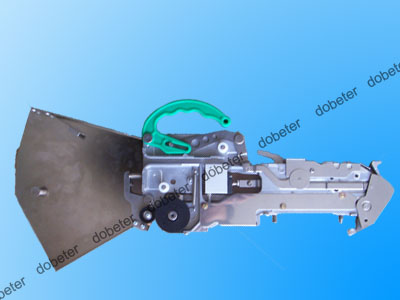

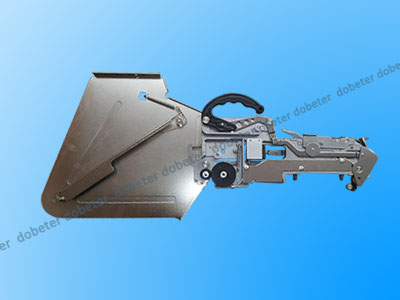

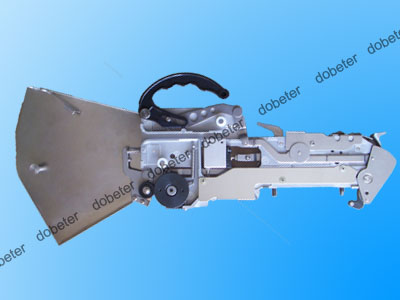

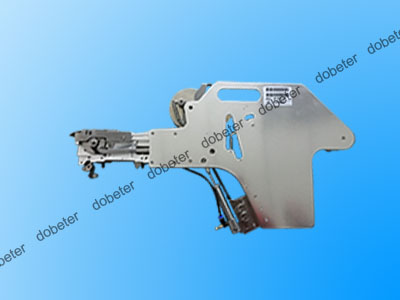

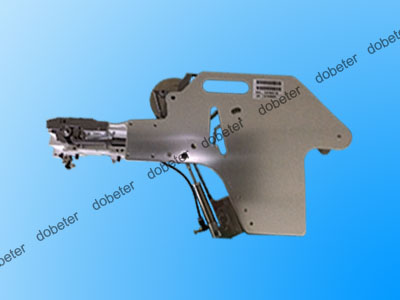

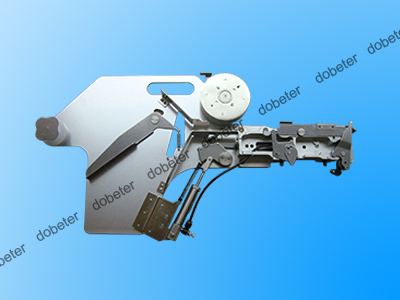

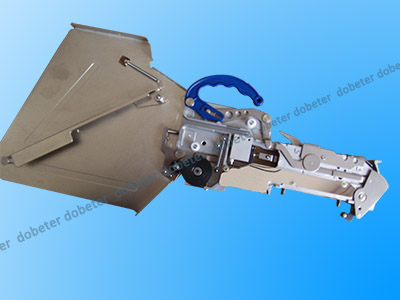

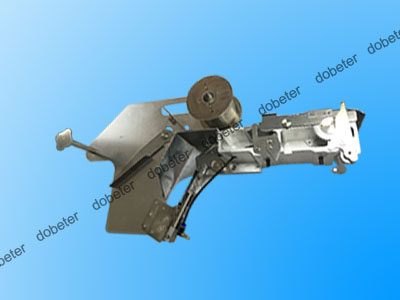

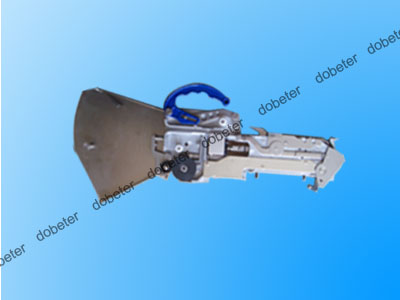

CL Series: Available in multiple tape widths (8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm) to accommodate different component sizes

FT Feeders, FS2 Feeders, FV Feeders: Other versions supporting older or specialized machines

These feeders are compatible with a wide range of Yamaha SMT machines, such as YVL88 II, YV88X, YV88XG, YV112, YV100X, YV100II, YV100A, and the YG series

This ensures flexibility when integrating into existing production lines.
Key Features
Smooth Component Feeding: Provides stable and consistent feeding force to reduce misfeeds and production downtime
Easy Operation: Lightweight and compact, enabling quick loading and unloading of tapes and faster line changeovers
Low Maintenance: Fewer moving parts and a simple pneumatic design reduce the need for frequent servicing
Versatility: Supports various tape widths and component types, enhancing flexibility for different PCB assembly tasks
Compatible with Yamaha SMT Systems: Ensures seamless integration for timing, placement accuracy, and reduced errors

Advantages Over Other Feeder Types
While electric feeders are preferred for high-speed or high-volume SMT production due to their precision, pneumatic feeders remain a practical alternative for low- to medium-volume operations because of:
Lower initial cost
Simpler design with fewer mechanical parts
Adequate accuracy for slower production lines or prototyping
