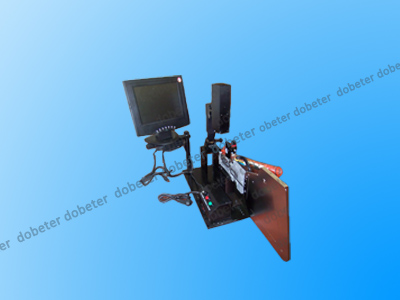

Assembleon Feeder Calibration Jig

Assembleon Feeder Calibration Jig

There're two kinds of Assembleon Feeder Calibration Jig, one is for the old Assembleon CL type or FV type Feeders. We can put a Stainless steel Calibration Strip into the feeder, there's a 50 times CCD camera to take the pictures of the cross on the Stainless steel Calibration Strip and see whether the cross in the right position, if not you need to calibrate the feeder. Another kind is KHJ-MD800-00 Assembleon SS ZS FEEDER TUNE-UP STATION, it is used to Calibrations Assembleon SS ZS FEEDER.

Delivery lead time : in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

Assembleon SS ZS FEEDER TUNE-UP STATION

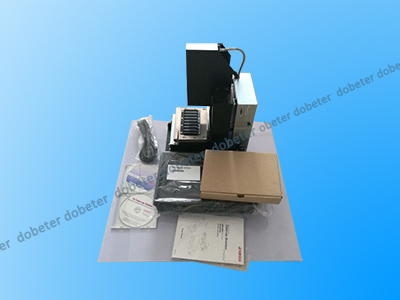

Assembleon SS ZS FEEDER TUNE UP STATION KHJ-MD800-00

Assembleon SS ZS FEEDER TUNE UP STATION KHJ-MD800-00

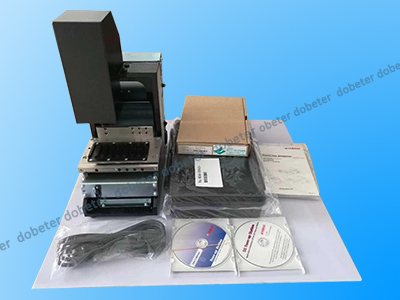

Assembleon SS ZS FEEDER TUNE UP STATION KHJ-MD800-000

Assembleon SS ZS FEEDER TUNE UP STATION KHJ-MD800-000

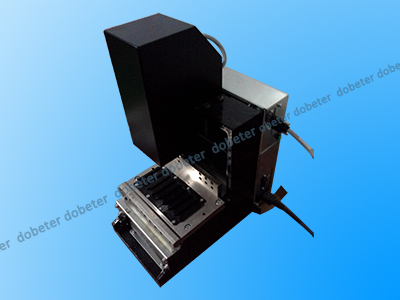

Assembleon SS ZS FEEDER TUNE UP STATION KHJ-MD800-010

Assembleon SS ZS FEEDER TUNE UP STATION KHJ-MD800-010

assembleon feeder calibration DBE-FCJ-ASB-NEW

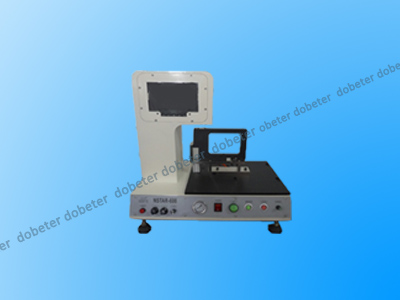

Assembleon Feeder Calibration Jig

1:Product Name:Intellectual Feeder Calibration
2:Model:DBE-FCJ-ASB-NEW
3: Characteristic
* Easy to manipulate.
* Quite different with the traditional feeder calibration , it has no axixes and guides, just adjust buttons you can move focus with ease, so more durable
* Actual feeding like machine running can be simulated. Also you can control it manually.
* High Definition Industrial CCD with magnifying power 50
* Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.
* Verify and calibrate feeders correctly by using master steel tapes.
* Ligth, beautiful and more durable。
4: Available for feeders such like Panasonic , Fuji , Juki , Yamaha ,Samsung , KME , Siemens , Sanyo etc
5: Power AC 110V / 220V 60W
6: Air pressure:4-5kg/cm2
7: Volumne:530mm(L)×350mm(W)×580mm(H)
8: Net Weight :22 Kg; Gross Weight : 36Kg.

assembleon feeder calibration-DBE-FCJ-ASB-TRD

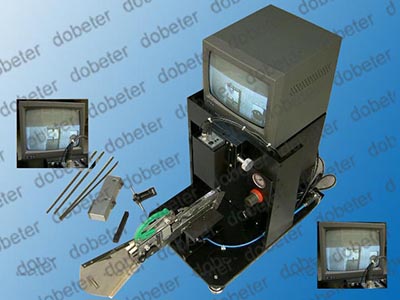

Assembleon Feeder Calibration Jig

FEATURE

  1. 8-24mm width. Various parts cassettes can be checked.
  2. Actual feeding like machine running can be simulated
  3. 50X CCD; with LED lighting, appearance clearer.
  4. Speed of feeding can be adjusted
  5. Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.
  6. Capable to operate 1 pitch each with the manual Mode and calibrate. Able to test calibrated feeders with the auto function.

C. Specification

assembleon feeder calibration-KM8-M34E0-B1X

Assembleon Feeder Calibration Jig

Part Name:FEEDER JIG ASSY PART No:KM8-M34E0-B1X
